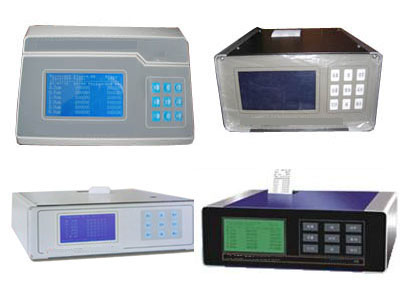

Laser Particle Counter: 5016/5016A/5016AB/5015C
Features and Benefits:
1. Applied for clean-room verification, clean
bench verification, IAQ investigation, food
process investigation, hospital surgical room.
2. Built-in flow sensor (0.1 CFM +/- 10%)
3. Low Battery Alarm
4. Measure the class 100 to 300k environment.
5. The instrument uses the laser diode as the
light source, LCD-panel displays, six different
size ranges simultaneously.
6. The built-in printer can print count results.
The counter can store 1000 samples data.
7. Software creates data files for viewing or
export to EXCEL sheet to computer.
8. Widely used in the fields of optics,precision
machinery, biology, food and beverage,etc.
|
 |
Laser Particle Counter 5016
Outside Dim |
236*280*126 mm³(Wide*Deep*High) |
Display |
LCD |
Weight |
4.5Kg |
Max. Consumption |
10W |
Power Source |
DC 16.8V (Lithium Ion Battery) |
Size Channels |
0.3, 0.5, 1.0, 2.0, 3.0, 5.0 um |
Calculation |
95％UCL calculation, Display Particle Concentration(particles/m³) |
Flow Rate |
2.83L/min |
Sample Time |
1---10min (Selectable) |
Zero Count |
≤10min |
Location Labels |
0-999 |
Printer |
Built-in Thermal Printer |
Alarm |
100,1000,10000 Class |
Data Storage |
1000 Samples (With PC Software) |
Light Source |
Laser Diode (30,000 hours Mean Time Between Failures) |
Maximum Rated Particle
Concentration |
35000 particles/L (≤0.5µm) |
Operating Time |
8 hours |
Environmental |
Temperature:10℃-35℃
Humidity:20％-75％RH
Atmosphere Pressure:86Kpa-106Kpa |
Laser Particle Counter: 5016A
Outside Dim |
236*280*126 mm³(Wide*Deep*High) |
Display |
LCD |
Weight |
4.5Kg |
Max. Consumption |
10W |
Power Source |
DC 16.8V (Lithium Ion Battery) |
Size Channels |
0.3, 0.5, 1.0, 3.0, 5.0,10 um |
Calculation |
95％UCL calculation, Display Particle Concentration(particles/m³) |
Flow Rate |
2.83L/min |
Sample Time |
1---10min (Selectable) |
Zero Count |
≤10min |
Location Labels |
0-999 |
Printer |
Built-in Thermal Printer |
Alarm |
100,1000,10000 Class |
Data Storage |
1000 Samples (With PC Software) |
Light Source |
Laser Diode (30,000 hours Mean Time Between Failures) |
Maximum Rated Particle
Concentration |
35000 particles/L (≤0.5µm) |
Operating Time |
8 hours |
Environmental |
Temperature:10℃-35℃
Humidity:20％-75％RH
Atmosphere Pressure:86Kpa-106Kpa |
Laser Particle Counter: 5016AB
Outside Dim |
236*280*126 mm³(Wide*Deep*High) |
Display |
LCD |
Weight |
4.5Kg |
Max. Consumption |
10W |
Power Source |
DC 16.8V (Lithium Ion Battery) |
Size Channels |
0.3, 0.5, 1.0, 3.0, 5.0,10 um |
Calculation |
95％UCL calculation, Display Particle Concentration(particles/m³) |
Flow Rate |
28.3L/min |
Sample Time |
1---10min (Selectable) |
Zero Count |
≤10min |
Location Labels |
0-999 |
Printer |
Built-in Thermal Printer |
Alarm |
100,1000,10000 Class |
Data Storage |
1000 Samples (With PC Software) |
Light Source |
Laser Diode (30,000 hours Mean Time Between Failures) |
Maximum Rated Particle
Concentration |
35000 particles/L (≤0.5µm) |
Operating Time |
8 hours |
Environmental |
Temperature:10℃-35℃
Humidity:20％-75％RH
Atmosphere Pressure:86Kpa-106Kpa |
Laser Particle Counter: 5016C
Outside Dim |
236*280*126 mm³(Wide*Deep*High) |
Display |
LCD |
Weight |
4.5Kg |
Max. Consumption |
10W |
Power Source |
DC 16.8V (Lithium Ion Battery) |
Size Channels |
0.3, 0.5, 1.0, 2.0, 3.0, 5.0 um |
Calculation |
95％UCL calculation, Display Particle Concentration(particles/m³) |
Flow Rate |
28.3L/min |
Sample Time |
1---10min (Selectable) |
Zero Count |
≤10min |
Location Labels |
0-999 |
Printer |
Built-in Thermal Printer |
Alarm |
100,1000,10000 Class |
Data Storage |
1000 Samples (With PC Software) |
Light Source |
Laser Diode (30,000 hours Mean Time Between Failures) |
Maximum Rated Particle
Concentration |
35000 particles/L (≤0.5µm) |
Operating Time |
8 hours |
Environmental |
Temperature:10℃-35℃
Humidity:20％-75％RH
Atmosphere Pressure:86Kpa-106Kpa |
